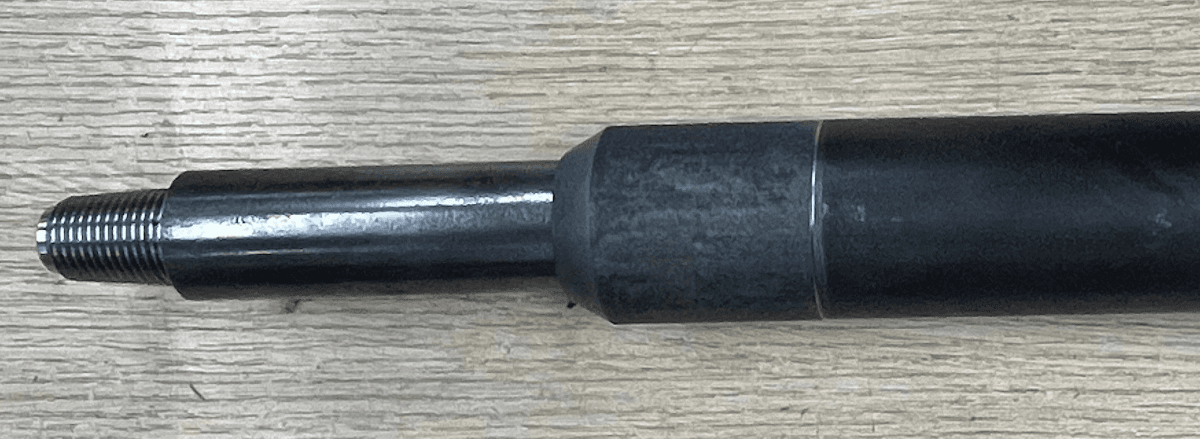

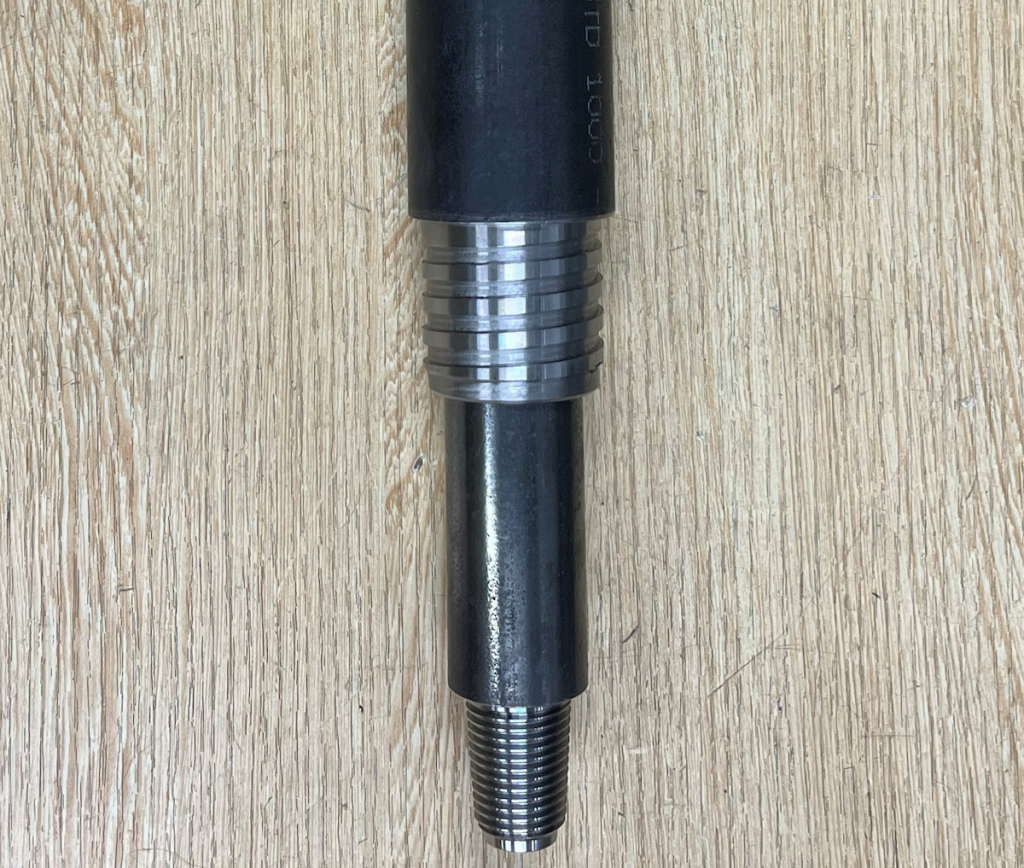

Casing tubes

Casing tubes are used to secure CPT rods in unstable and/or weak soil. Their stiffness provides adequate lateral support and prevents CPT rods from warping and, consequently, breaking.

The casing pipes may be ended with a cutting shoe.

Technical parameters

• Outer diameter - 55 mm
• Inner diameter - 39 mm
• Available lengths - 0.2 m, 0.3 m, 0.5 m, 1.0 m
• Thread - SpeedLock type
